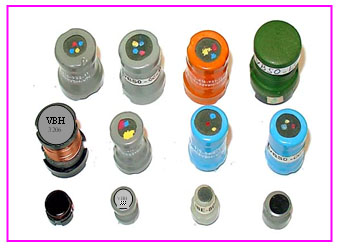

Code: DRUM CORE
 |
Applications:
- Power supplies
- SCR and Triac controls
- Switching circuits
- Other filters |

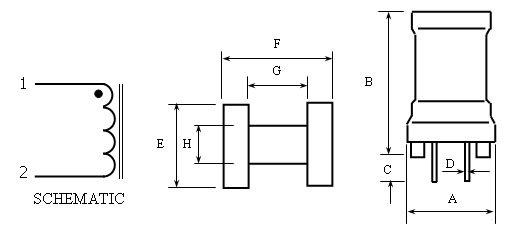

Shapes And Dimensions
|
Part Number |
A |
B |
C |
øD |
E |
G |
H |
|
VBSO-CC-01 |
13 ± 1 |
22 Max |
4.5 ± 1 |
0.7 ± 0.1 |
11 ± 1 |
10 ± 0.2 |
4.8 ± 0.2 |
|
VBSO-CC-02 |
16 ± 1 |
22 Max |
4.5 ± 1 |
0.7 ± 0.1 |
14 ± 1 |
10 ± 0.2 |
7.3 ± 0.2 |
|
VBSO-CC-03 |
16 ± 1 |
22 Max |
4.5 ± 1 |
0.7 ± 0.1 |
14 ± 1 |
9 ± 0.2 |
6.8 ± 0.2 |
|
VBBSN-CC-02 |
16 ± 1 |
22 Max |
4.5 ± 1 |
0.7 ± 0.1 |
14 ± 1 |
10 ± 0.2 |
7.3 ± 0.2 |
|
VBSO-CC-05 |
14 ± 1 |
22 Max |
4.5 ± 1 |
0.7 ± 0.1 |
12 ± 1 |
10 ± 0.2 |
6.0 ± 0.2 |
Electrical specifications
|
Part Number |
Inductance
mH@1KHz |
DC superimposing
Inductance (mH) |
Rated current (A) |
DCR (ohm) |
|
VBSO-CC-01 |
3.3 ± 7 % |
2.5 min |
0.30 |
4.0 max |
|
VBSO-CC-02 |
10 ± 10 % |
8.0 min |
0.30 |
5.4 max |
|
VBSO-CC-03 |
0.39 ± 7% |
0.33 min |
1.0 |
0.23 max |
|
VBBSN-CC-02 |
0.05 ± 20% |
0.03 min |
2.0 |
0.03 max |
|
VBSO-CC-05 |
10 ± 7 % |
8.1 min |
0.20 |
7.3 max |
|
Customer’s design are welcome to VBH |
|
