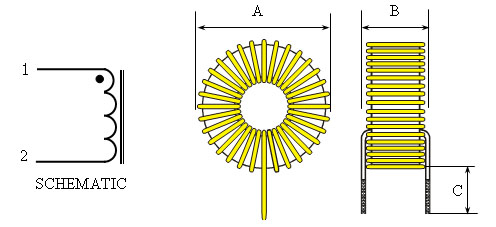

Part Number

A

B

C

VBTE-CC-18

14 ± 1

6 ± 0.5

10 ± 1

VBCC-CC-04

22 ± 1

12 ± 0.5

12 ± 1

VBCC-CC-05

25 ± 1

14 ± 0.5

12 ± 1

VBMTA-CC-04

48 ± 2

23 ± 1

16 ± 1

VBMTA-CC-05

35 ± 2

21 ± 1

16 ±  1

VBMTA-CC-06

22 ± 1

10 ± 1

12 ± 1

VBMTA-CC-07

24 ± 1

13 ± 1

12 ± 1

Part Number

Inductance (µH)

@ 1kHz ; 0.1V

Rated current (A)

DC superimposing

Inductance (µH)

DCR (Ohm)

VBTE-CC-18

330mH ± 15%

1.6A

200 min

0.21 max

VBCC-CC-04

330mH ± 15%

1.7A

185 min

0.23 max

VBCC-CC-05

330mH ± 15%

3.3A

140 min

0.10 max

VBMTA-CC-04

250mH ± 15%

5.0A

100 min

0.20 max

VBMTA-CC-05

50mH ± 15%

8.0A

20 min

0.20 max

VBMTA-CC-06

8.0mH ± 15%

2.0A

5.0 min

0.10 max

VBMTA-CC-07

20mH ± 15%

3.0A

12 min

0.10 max
