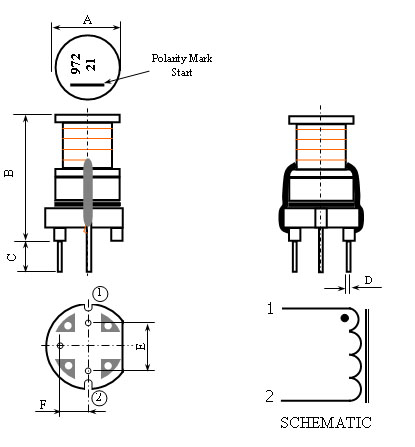

Part Number

A

B

C

øD

E

F

VBLG-LC-03

13 Max

20 Max

4.5 ± 1

0.7 ± 0.1

7.5 ± 0.5

VBSA-LC-04

13 Max

23 Max

4.5 ± 1

0.7 ± 0.1

7.5 ± 0.5

VBDW-LC-05

15 Max

31 Max

4.5 ± 1

0.8 ± 0.1

7.5 ± 0.5

3.75 ± 0.5

VBBE-LC-412

17 Max

21 Max

4.5 ± 1

0.8 ± 0.1

10 ± 0.5

5.0 ± 0.5

VBSO-LC-30

15 Max

37 Max

4.5 ± 1

0.8 ± 0.1

10 ± 0.5

5.0 ± 0.5

Part Number

DC superimposing

Ind.(µH)

Rated current

(A)

Inductance

(1kHz ; 0A)

(µH)

DC superimposing

Ind.(µH)

Rated current

(A)

DCR (mOhm)

VBLG-LC-03

70 ± 20%

-1.5A

166 ± 20%

170 ± 20%

+1.5A

300 Max

VBSA-LC-04

45 ± 20%

-1.0A

142 ± 20%

157 ± 20%

+1.0A

300 Max

VBDW-LC-05

34 ± 20%

-2.0A

102 ± 20%

307 ± 20%

+2.0A

250 Max

VBBE-LC-412

41 ± 20%

-2.0A

52 ± 20%

62 ± 20%

+2.0A

230 Max

VBSO-LC-30

300 ± 20%

-2.0A

68 ± 20%

45 ± 20%

+2.0A

165 Max
