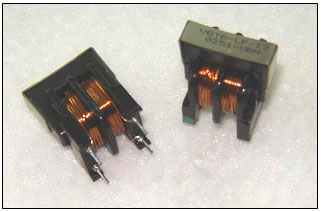

Code: UU1620
 |
Applications:
- Suppresses noise in DC circuits for switching regulators
- Filters noise emitting from ultrasonic equipments
- Filters electronic noise from power and signal lines
- Eliminates contact noise
- TV,VCR, Switching power sources
- Peripheral units measuring instruments, etc. |

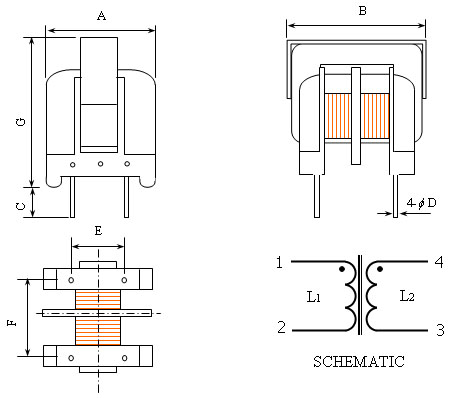

Shapes And Dimensions
|
Part number |
A |
B |
C |
E |
F |
G |
|
UU1620 |
19 Max |
23 Max |
4.5±0.5 |
10±0.2 |
13±0.2 |
30 Max |
Electrical specifications
|
Part
Number |
Inductance
(mH)@1kHz |
Rated
voltage |
Rated current
IAC(A) |
DCR
Ohm |
|
VBH-LF-01 |
2.0 ± 30% |
AC250-50/60HZ |
2.2 |
0.10 Max |
|
VBHA-LF-02 |
4.0 ± 30% |
AC250-50/60HZ |
2.0 |
0.20 Max |
|
VBTB-LF-13 |
10 ± 15% |
AC250-50/60HZ |
1.5 |
0.30 Max |
|
VBDW-LF-11 |
15 ± 15% |
AC250-50/60HZ |
1.0 |
1.00 Max |
|
VBH-LF-10 |
20 ± 15% |
AC250-50/60HZ |
0.5 |
1.60 Max |
|
Customer’s design are welcome to VBH |
|
